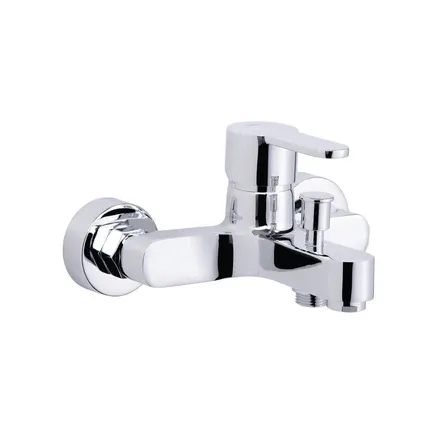

Lento Bath Mixer
0,00 TL
| Technical Information | |
| Category | Bath Mixer |
| Family | Lento |
| Finish | Chrome |
| Manufacturer Warranty | 10 Year |
| Flow Rate | (at 3 bar) 9 L/min |
| Acoustic Class | U |
| Product Standard | TS EN 817 (Single Control) |
| Body Raw Material | Brass |
| Aearator Type | M24X1 Male Threaded |
| Operation Type | Ceramic Disc Cartridge Ø35 mm With Leg |
| Number Of Control Handle | Single |
| Material Of Control Handle | Metal |
| Max. Performance Pressure | 10 Bar |
| Suggested Performance Pressure | 3 Bar |
| Min. Performance Pressure | 0.5 Bar |
| Suggested Min. Pressure | 1 Bar |
| Max. Performance Temperature | 80°C |
| Suggested Performance Temperature | 60°C |
| Installation Connection Type | From The Wall |
| Wall Connection Axis Dimension | 150±7 mm |
| Dimension Of Wall Rosette | Ø60 mm |
| Shower Connection | G1/2" |
| Shower Diverter Type | Automatic 1/2" |
| Spout- Wall Distance | 168 mm |
| Product Total Height | 100 mm |
| Resources | |
| 2D Technical Drawing (PDF) | |
| 2D Technical Drawing (PDF) | |
| TS EN 817 Certificate |
